前置步骤

腾空节点

[root@master~] # kubectl drain node1 --ignore-daemonsets --force

停止节点相关服务

[root@node1~] # systemctl stop kubelet
[root@node1~] # systemctl disable docker --now

K8S版本对应关系

containerd对应

https://containerd.io/releases/

ingress版本对应

https://github.com/kubernetes/ingress-nginx

calico对应

https://docs.tigera.io/calico/latest/getting-started/kubernetes/requirements

第一步：安装containerd

1.1：先下载使用的软件

containerd()

https://github.com/containerd/containerd/releases/download/v1.7.27/containerd-1.7.27-linux-amd64.tar.gz

cni-plugins()

https://github.com/containernetworking/plugins/releases/download/v1.6.2/cni-plugins-linux-amd64-v1.6.2.tgz

runc()

https://github.com/opencontainers/runc/releases/download/v1.2.5/runc.amd64

nerdctl(containerd的命令行)

https://github.com/containerd/nerdctl/releases/download/v2.1.2/nerdctl-2.1.2-linux-amd64.tar.gz

1.2：解压containerd

[root@node1/home] # tar -vxf containerd-1.7.27-linux-amd64.tar.gz -C /usr/local/
bin/
bin/ctr
bin/containerd-stress
bin/containerd-shim
bin/containerd
bin/containerd-shim-runc-v2
bin/containerd-shim-runc-v1

1.3：创建containerd服务

[root@node1~] # mkdir -p /usr/local/lib/systemd/system/
[root@node1~] # touch /usr/local/lib/systemd/system/containerd.service
[root@node1~] # vim /usr/local/lib/systemd/system/containerd.service

将官方配置文件写入

官方配置文件：https://raw.githubusercontent.com/containerd/containerd/main/containerd.service

# Copyright The containerd Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

[Unit]
Description=containerd container runtime
Documentation=https://containerd.io
After=network.target local-fs.target

[Service]
ExecStartPre=-/sbin/modprobe overlay
ExecStart=/usr/local/bin/containerd

Type=notify
Delegate=yes
KillMode=process
Restart=always
RestartSec=5

# Having non-zero Limit*s causes performance problems due to accounting overhead
# in the kernel. We recommend using cgroups to do container-local accounting.
LimitNPROC=infinity
LimitCORE=infinity

# Comment TasksMax if your systemd version does not supports it.
# Only systemd 226 and above support this version.
TasksMax=infinity
OOMScoreAdjust=-999

[Install]
WantedBy=multi-user.target

1.4：设置开机自启

[root@node1~] # systemctl daemon-reload
[root@node1~] # systemctl enable --now containerd
Created symlink from /etc/systemd/system/multi-user.target.wants/containerd.service to /usr/local/lib/systemd/system/containerd.service.

1.5：安装runc

[root@node1/home] # install -m 755 runc.amd64 /usr/local/sbin/runc

1.6：安装cni

[root@node1/home] # mkdir -p /opt/cni/bin
[root@node1/home] # tar -vxf cni-plugins-linux-amd64-v1.6.2.tgz -C /opt/cni/bin/
./
./ipvlan
./tap
./loopback
./host-device
./README.md
./portmap
./ptp
./vlan
./bridge
./firewall
./LICENSE
./macvlan
./dummy
./bandwidth
./vrf
./tuning
./static
./dhcp
./host-local
./sbr

1.7：生成配置文件

#生产containerd的配置文件
mkdir /etc/containerd
containerd config default > /etc/containerd/config.toml

#定义 crictl 如何连接到容器运行时
cat >/etc/crictl.yaml<<EOF
runtime-endpoint: unix:///run/containerd/containerd.sock
image-endpoint: unix:///run/containerd/containerd.sock
timeout: 10
debug: false
EOF

1.8：修改配置文件

[root@node1/etc/containerd] # grep 'sandbox_image' /etc/containerd/config.toml
    sandbox_image = "registry.k8s.io/pause:3.8"
[root@node1/etc/containerd] # sed -i 's#registry.k8s.io/pause:3.8#registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.8#' /etc/containerd/config.toml
[root@node1/etc/containerd] # grep 'sandbox_image' /etc/containerd/config.toml
    sandbox_image = "registry.cn-hangzhou.aliyuncs.com/google_containers/pause:3.8"

[root@node1/etc/containerd] # grep SystemdCgroup /etc/containerd/config.toml
            SystemdCgroup = false
[root@node1/etc/containerd] # sed -ri 's#(SystemdCgroup = )false#\1true#' /etc/containerd/config.toml
[root@node1/etc/containerd] # grep SystemdCgroup /etc/containerd/config.toml
            SystemdCgroup = true

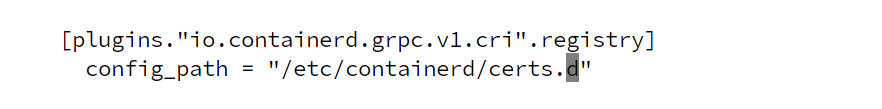

#将该配置文件的 [plugins."io.containerd.grpc.v1.cri".registry] 下的config_path = ""修改成自己的镜像加速配置文件夹(就是步骤1.9的certs.d总文件夹)

注意：如果你使用 cgroup v2，则推荐 systemd cgroup 驱动。 识别 Linux 节点上的 cgroup 版本:cgroup 版本取决于正在使用的 Linux 发行版和操作系统上配置的默认 cgroup 版本。 要检查你的发行版使用的是哪个 cgroup 版本，请在该节点上运行 stat -fc %T /sys/fs/cgroup/ 命令

stat -fc %T /sys/fs/cgroup/

对于 cgroup v2，输出为 cgroup2fs。
对于 cgroup v1，输出为 tmpfs


置 systemd cgroup 驱动
要在 /etc/containerd/config.toml 中将 runc 配置为使用 systemd cgroup 驱动， 请根据你使用的 Containerd 版本设置以下配置：

Containerd 1.x 版本：

[plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc]
  ...
  [plugins."io.containerd.grpc.v1.cri".containerd.runtimes.runc.options]
    SystemdCgroup = true

Containerd versions 2.x 版本：

[plugins.'io.containerd.cri.v1.runtime'.containerd.runtimes.runc]
  ...
  [plugins.'io.containerd.cri.v1.runtime'.containerd.runtimes.runc.options]
    SystemdCgroup = true

1.9：创建文件夹(这里配的是镜像加速，根据自己实际情况来)

[root@node1/etc/containerd] # mkdir -p /etc/containerd/certs.d/{10.0.0.105:9080,docker.io,registry.k8s.io}

1.10：将配置分别写入

[root@node1/etc/containerd] # cat > /etc/containerd/certs.d/docker.io/hosts.toml <<EOF
server = "https://docker.io"

[host."https://docker.m.daocloud.io"]
  capabilities = ["pull", "resolve"]
[host."https://dockerproxy.com/"]
  capabilities = ["pull", "resolve"]
EOF



[root@node1/etc/containerd] # cat > /etc/containerd/certs.d/registry.k8s.io/hosts.toml << EOF
server = "registry.k8s.io"

[host."k8s.m.daocloud.io"]
  capabilities = ["pull", "resolve"]
EOF


#根据自己的私有仓库地址进行修改
[root@node1/etc/containerd] # cat > /etc/containerd/certs.d/10.0.0.105\:9080/hosts.toml << EOF
server = "http://10.0.0.105:9080"

[host."http://10.0.0.105:9080"]
  capabilities = ["pull", "resolve", "push"]
  skip_verify = true
EOF

1.11：将containerd命令行nerdctl放到/usr/local/bin下

[root@node1/home] # tar -vxf nerdctl-2.1.2-linux-amd64.tar.gz -C /usr/local/bin/

1.12：重启

[root@node1/etc/containerd] # systemctl restart containerd

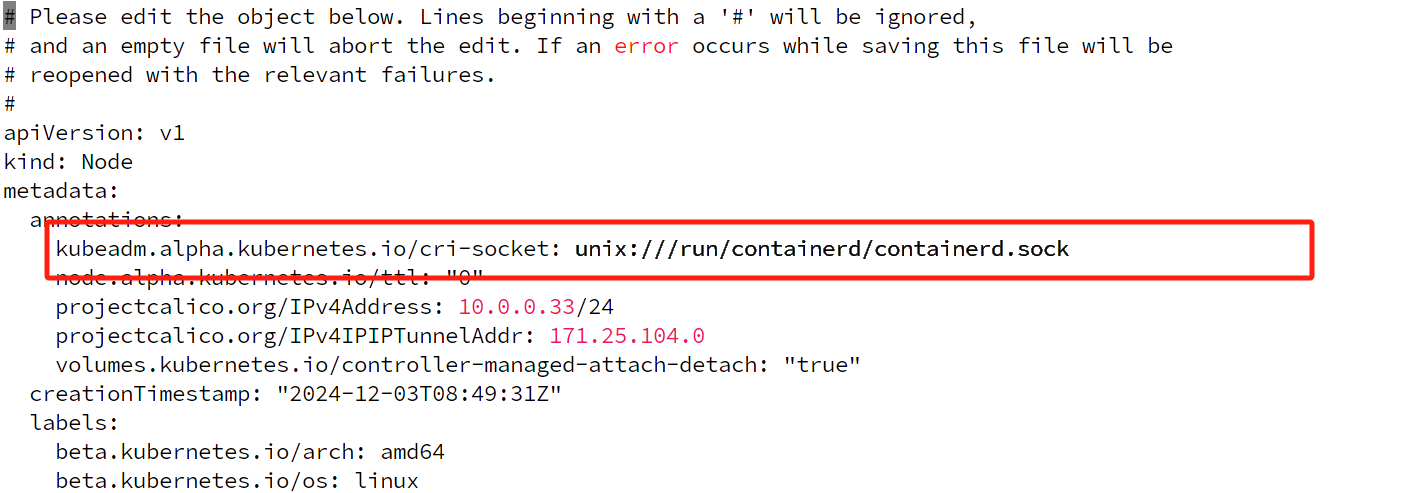

1.13：在主节点上修改node的运行socket为containerd

[root@master~] # kubectl edit no node1

将kubeadm.alpha.kubernetes.io/cri-socket由dockershim改为unix:///run/containerd/containerd.sock

1.14：卸载docker

...省略.....

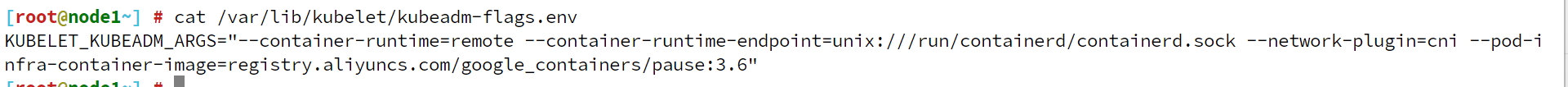

1.15：修改kubelet启动配置

vim /var/lib/kubelet/kubeadm-flags.env
#在参数后加上 --container-runtime=remote --container-runtime-endpoint=unix:///run/containerd/containerd.sock

1.16：重启kubelet

[root@node1~] # systemctl daemon-reload
[root@node1~] # systemctl restart kubelet.service

1.17：在主节点验证

[root@master~] # kubectl get node -o wide | grep node1

1.18：让节点恢复调度

[root@master~] # kubectl uncordon node1
